3Way – 4Way Ball Valve

Categories: , ,

Share to:

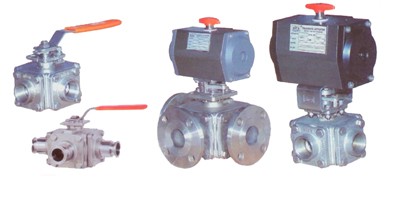

"Aira" offers ISO 5211 Standard Pneumatic Rotary Actuator Operated ‘Three Way- Four Way" Design Investment Casting CF8 / CF8M I WCB Ball Valve, engineered for multiple Diverting / Mixing operations in the down stream.

Size Range: 1/2" to 8 " Screwed / Flanged / Triclover

Type: "T"-PORT / "L" - PORT / "X" - PORT

In Full / Reduce Bore

Technical Specification

Accessories
• On/Off Indicator
• NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof solenoid Coil-on request)
• I/P Transducer (Convertor)
• Pneumatic valve positioner
• Electro-pneumatic valve positioner
• Declutchable Manual Override
• Limit Switches for On/Off Indication at Panelboard
• Filter + Regulator Combination with Pressure Gauge
• Air Lock Valve

Features
• Body & End are Investment Cast
• Self-adjusting stem packing
• Available in 3-way & 4-way
• 4piece ball seats
• Blow-out proof stem design
• 100% air tested under water at 80 -100 psi
• ISO 5211 direct mounting pad

Actuator

Type
Actuation
Mounting std.
Pneumatic Connections

: Rack and Pinion Type
: Double Acting! Single Acting (Spring Return)
: ISO 5211 An International Standard
: NAMUR Standards
Ball Valve

Body
Ball
Stem
Gland
Seat & Seals
Working Temperature
Temperature Range
End Connection

: ASTM A351 Gr. CF 8- CF SM / ASTM A216 Or WCB
: ASTM A351 Gr. CF 8- CF 8M
: Stainless Steel AISI 304 / AISI 316
: Stainless Steel AISI 304 / AISI 316
: PTFE(GIass flIed, Carbon Filled Teflon - Optional ii se of high temp)
: ANSI 150/ ANSI 300 / PN 16- 800 PSI
: -25 °C to 180 °C
: Screwed to- BSP/NPT
: Flanged to - ANSI 150 / ANSI 300 / PN 16
: Triclover end

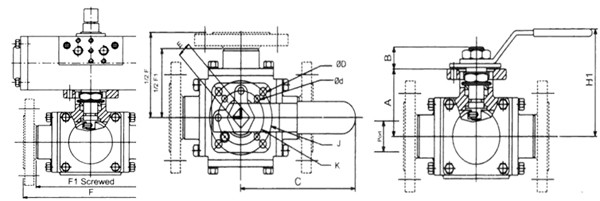

DIMENSION: (All Dimension are in mm)

Valve Model Valve Size A B c Ød ØD H1 K J E Port F F1 Weight (Approx.)
MM Inch 150 300 PN16 S/E F/E
SUZ-503-15 15 1/2 41 11 125 6 6 67 36 42 9 15 151 160 160 104 3.16 4.5
SUZ-503-20 20 3/4 49 14 160 6 7.1 80.8 42 50 11 19.5 167 177 177 112 3.68 5,400
SUZ-503-25 25 1 55 14 160 6 7.1 87.5 42 50 11 25.7 192 200 190 128 4.76 6.94
SUZ-503-32 32 1 1/4 63 18 205 7.1 9.2 98 50 70 14 32 208 218 208 140 - -
SUZ-503-40 40 1 1/2 74 18 205 7.1 9.2 114 50 14 38 219 234 234 163 10.66 14.32
SUZ -503-50 50 2 93 23 325 9.2 11 140 70 102 17 49 253 273 273 191 16.5 23.16
SUZ-503-65 65 2 1/2 73.5 25 400 12 250 - 102 22 62 302 - . 293 - 30,200
SUZ-503-80 80 3 81.5 25 500 12 285 - 102 22 76 307 - - 319 - 37,980
SUZ-503-100 100 4 99.5 25 650 - 12 330 - 102 22 96 370 - . 367 . - -
SUZ-503-150 150 6 136 - 650 - - 400 - 102 27 150 422 - - - - -
SUZ-503-200 - - 200 8 On Request
