“GST” Semi Lift Diaphragm Solenoid Valve For Low Pressure Fluids

Categories: , ,

Share to:

"Aira" offers 2/2 way semi pilot, high-performance diaphragm type solenoid valves for high volume and low-pressure application in air, gas, water, vacuum, light oil, and corrosive fluids. available in normally closed and normally open designs.

Size: "3/8" To 4 Screwed / Flanged / Triclover
Suitable For: Autoclaves, Gas burning equipment, Oil centrifuge plants, Vacuum plants, Pump seal water application, Low-pressure water circulation systems, solar heating systems, Gas generators, etc...



Valve:

Body and Bonnet Construction
Diaphragm
Temperature of Fluid

Pressure Rating
IP 20(IS 2147) Solenoid Coil
IP65 (IS 2147) Solenoid Coil
Group I, VA, IIB, & IIC (IS 2148) Solenoid Coil
Voltage

: ASTM A 351 - CF8 / CF 8M
: Nitrile or Neoprene
: -5°C to 85°C max.
: (High Temperature on Request)
: 0 to 6 bar max.(0 tab bar on Request)
: General Purpose
: For Waterproof application
: For Explosion / Flame-proof application.
: 24,48,110,220 VoltsAC, 50Hz
12,24,48,110,220 VoIts DC.

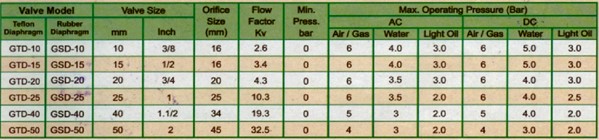

Technical Specification Table :

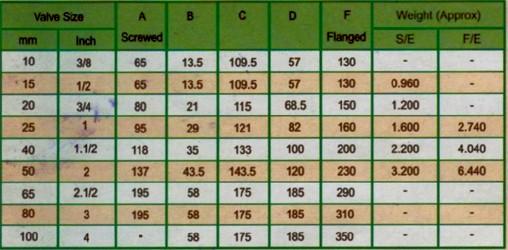

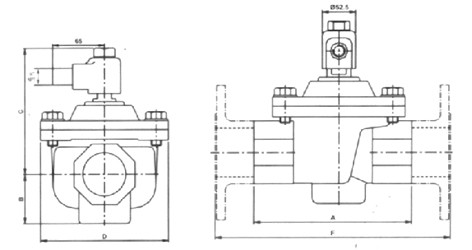

DIMENSIONS : (All Dimensions are in m
m)
