Pneumatic Cylinder Operated Knife Pulp Valve

Categories: , ,

Share to:

"Aira" offers ISO 6431 standard pneumatic Cylinder operated Knife Edge Design Knife Pulp Valve, are Solution to PUlP & Heavy fluid ON/OFF problems in Paper Industries.
Size Range: 1.1/2" to 40"
Application: Slurries, Sludges, Powders, in Pulp & Paper, Textile, Chemical, Sewage, Sugar Plants
Accessories: 5/2,3/2 Way Solenoid Valve, Pilot Valve, Filter Regulator, Moisture Separator, and Quick Exhaust Valve are available on request.



Technical Specification:

End Connection
Manufacturing Std
Inspection Testing Std

: Wafer / Luged to suit 8310 Table-’D’ /ANSI B 16.5 (150#
: MSS SP-81
: MSS SP-81



Pneumatic Cylinder :

Barrel
End Covers
Piston
Piston Rod
Seals
Working Press
Operating Temp

: Stainless Steel / Aluminium Honed and Anodized Tube
: Aluminium Press Die Cast / SG Iron
: Aluminium / Cast Iron / SG Iron
: Steel-Hard Chrome Plated / S. Steel
: Nitrile / Polyurethane (Silicon, Viton on request.)
: 4 to 12 bar
: Upto 85’ C (High Temi on request)



PulpValve:

Body
Yokes
Knife Plate
Seat
Gland Plates
Stem Nut
Gland Packings
Gasket
Hydraulic Test Pressure

: C. I. IS 210 Gr. FG 200 (CAST STEEL / STAINLESS STEEL- on request )
: Carbon Steel
: SS 304 / SS 316
: Resilient / Metal to Metal
: C. I. IS 210 Gr. FG 200 (Cast steel)
: G. M. / S.C. Iron
: PTFE Impregnated Asbestos (Ste No. 1094)
: CAF / Resilient
: Body at 5Kg/Cm2 Seat 2.8 Kg 1Cm2

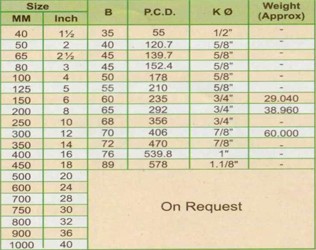

DIMENSIONS(All Dimensions are in mm)
