Solenoid Valve For Air/Gas/ Oil/ Water/ Chemical

Categories: , ,

Share to:

"Aira" solenoid valves are the best for inflammable media. The Flameproof Explosion proof solenoid coils are available in such applications.
Size: "1/8" , 1/4" , 3/8", 1/2" BSP / NPT
Types: Normally Close (N/C) / Normally Open (N/O) / Universal
• Compact design light weight & long durability.
• Constructed from advanced technology & design.
• 600 operations per minute.
• Easy installation, universal mounting.
GROUP- I
Suitable for 0 to l0 Kg/Cm2
GROUP-Il
Suitable for 2, 10, 35 & 70 Kg/ Cm2



Valve

Body Construction
Seat
Temperature of fluid
Coil Voltage
Media

: IC S.S. 304 / Aluminium / Brass Forged
: Viton
: -5°C to 85° C(high temperature on request
: 12V, 24V, 48V, 110V, 220V AC / DC
: Air! Gas / Oil / Water! Chemical

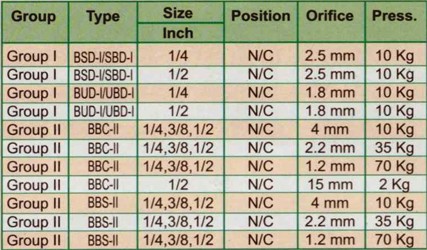

Technical Specifications Table

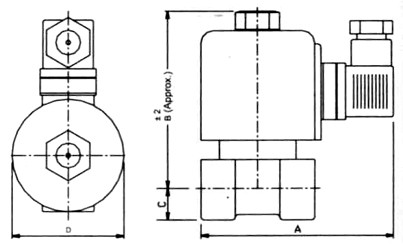

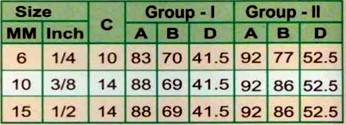

DIMENSIONS : (All Dimension are in mm)
