“SSD” 2/2 Way Direct Acting Semi Stem Solenoid Valve For Hot Air / Hot Oil / Hot Water/Steam

Categories: , ,

Share to:

"Aira" Offers 2/2 way direct acting solenoid valves that are the best for the inflammable — media. The flameproof Explosion-proof solenoid coils are available in such applications.

Size Range: 1/4" & 1/2" BSP/NPT



Types:
• Normally Close
• Compact design light weight & long durability.
• Constructed from advanced technology & design.
• 600 operations per minute.
• Easy installation, universal mounting

Technical Specifications :

Body Construction
Seat
Pressure
Temperature of Fluid
Coil Voltage
Coil Insulation
Port Size
Coil Rating
Media

: Brass forged / Aluminium / S.Steel
: Viton
: 0 to l2Kg/ Cm2
: -5 To 150°C
: 12V, 24V, 48V, 110v, 220V AC/DC
: H Class
: 1mm To 6mm
: Continuous Rated
: Air /Gas / Oil / Water/ Chemical

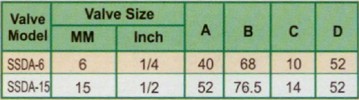

DIMENSIONS (All Dimension are mm)
