Diapharam Type “ISD” Solenoid valve For Air / Water / Gas / Oil/ Chemical

Categories: , ,

Share to:

"Aira" offers HIGH FLOW Diaphragm type solenoid valves, are specially engineered in the construction of Investment Cast CF8/ CF8M body with Electroplating for multiple and long-lasting operations.
Types:
1. Normally close - Energised to Open
2. Normally Open - Energised to Close

Application: Air, Water, Light Oil, Gas, Light Chemical
Size: "1/4" To 6 Screwed / Flanged / Triclover
"aira" solenoid valves are the best for inflammable media/environment. The Flameproof Explosion proof solenoid coils are available in such applications.

Applications:
Textile Processing Machinery, Chemical Plants, Water Treatment, SugarMachinery, Cement Machinery, Pumps, Irrigation, Combustion Equipment, Heat Exchanger, Air Dryers, Pollution Controls, Laundry Equipments and where dependable ON/OFF type control is required



Technical Specifications :
Body & Cover
Seals / Diaphragm
Pressure Range
Temperature Range
Coil Voltage
Coil Insulation
Coil Rating

: ASTM A 351 - CF8 / CF8M
: Nitrile / Neoprene (optional-silicon, Viton & other)
: 0.5 to 10 bar
: -5°c to 85° C on request(On request upto 95°C)
: 12V, 24V, 48V, 11OV, 230V, AC? DC
: ‘F’ Class
: Continuous Rated

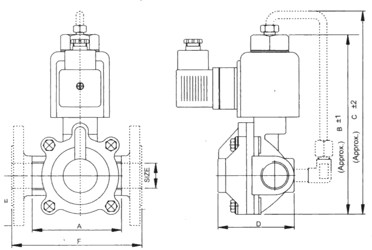

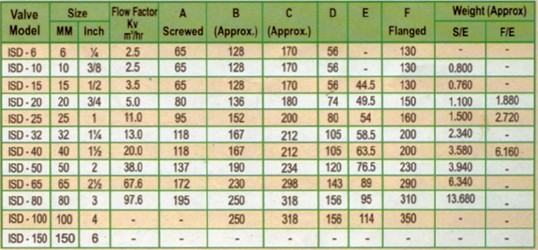

DIMENSIONS(All Dimensions are in mm).
