“PRV” Pressure Reducing Valve

Categories: , ,

Share to:

"Suzhik" Offers Pressure Reducing Valve Investment Cast Stainless Steel Material for Air, Water, Oil, Gas, Steam & Chemicals.



Options:
Available different Models for Oil, Air, Water, Gas Steam & Chemical
LP- Low-Pressure range, 3~20 PSI
HP- High-Pressure range, Max Inlet 40kg/cm2 Outlet 20~35kg/cm2

Standard:
1/2"~6" meet the requirements of
ASSE standard 1003. (ANGST 112.26)
CSA standard B356
(ASSE -American Society of Sanitary Engineerings)
(CSA-Canadian Standard Association)

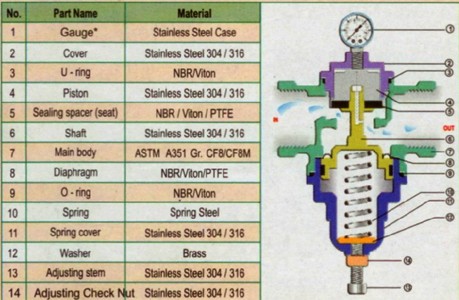

Materials:

Body
Seat
Diaphram
O-ring
Spring
Adjusting Stem
Ends

: 1/2" ~6"(15-50 mm)
: ASTM A351 Gr.CF8 / CF8M
: Buna~N (Water) / PTFE (stem)
: Buna~N(Water)/PTFE (stem)
: Buna-N
: Spring Steel
: Screwed / Flanged
Pressure Temperature :

Temperature range
Temperature range
Maximum Working Press
Pressure adjustment range

: 80°c (for water)
: 200°c (for Steam)
: 21 kg / cm2 inlet
: 1~6kg / cm2
4~10kg / cm2, 8~13kg / cm2


Technical Specification :

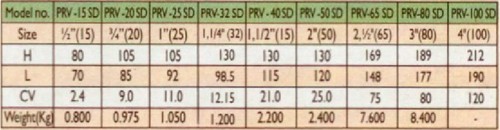

DIMENSIONS (All Dimensions are in mm) Screwed

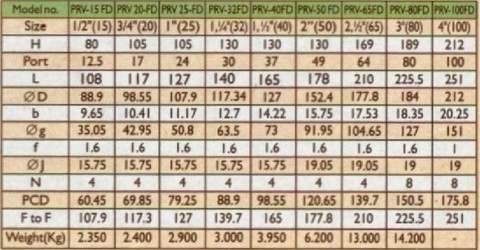

DIMENSIONS (All Dimensions are in mm)Flanged
