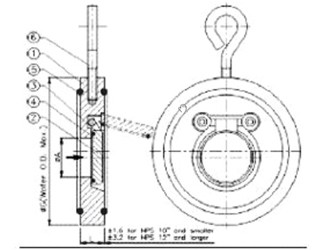

Single Plate Water Type Check Valve

Special Features: A Check Valve is a Mechanical device, a valve that normally allows a fluid to flow through it in only one direction. Check valves are two-port valves, meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. There are various types of check valves used in a wide variety of applications. Although they are available in a wide range of sizes and costs, many check valves are very small and simple/ or cheap. Check Valves work autometically and most are not controlled by a person or any external control; accordingly, most do not have any valve handle or stem. The bodies (external shells) of most check valves or made of metal

An important concept in check valves is the cracking pressure which is the minimum upstream pressure at which the valve will operate. Typically the check valve is designed for and can therefore be specified for specific cracking pressure

CHECK VALVES - STEEL BOLTED COVER SWING TYPE
CHECK VALVES - STEEL PRESSURE SEAL COVER SWING TYPE
CHECK VALVES - WAFER
CHECK VALVES - DUAL PLATE
CHECK VALVES - NON SLAM
CHECK VALVES - FLAP TYPE

Technical Specification

Technical Data
MANUFACTURING STANDARD: AP 16D/ANSI B16 10(SHORT PATTERN)
FACE TO FACE: API 6D(SHORT PATTERN)
END CONNECTION: WAFER TO Suit ANSI B16.15 150#/
DIN 2542(PN10)/DIN 2543(PN16)/BS 10 TABLE'D'/'E'
INSPECTION AND TESTING STANDARD-API6D/ API 598
