Reflux Valve

Categories: , ,

Share to:

Special Features: The cast iron swing check type Reflux valves are strictly manufactured as per 15:5312 part-1. These Valves are generally used to maintain flow of water in only one direction and stop the return flow of the water. They are self-operative by pressure only. These valves are used in water main lines all over the world, especially in hilly areas. These can be fitted in horizontal or vertical positions. These valves are ISI-marked. All the major components of these valves of manufactured in our factory right from casting to the final testing. The flanges of these valves are normally drilled as per 151:1538 but any type of drilling like BS: 10, DIN, ASA, etc. can be provided These valves can be supplied with door faces either of metal or rubber as per requirement

We can also provide external bypass arrangements with these valves where designs are tested as per IS:5312 as follows:

Text Pressure body 25(kg/cm.sq)
Seat 15(kg/cm.sq)10(kg/cm.sq)

Technical Data
MANUFACTURING STANDARD: BS 5312(part-1)
END CONNECTION: Fk mgd ends to IS 1538(part-1/avI)
INSPECTION 4 TESTING STANDARD-IS 5312(PART-1)

P NO Qty Nomenclature Material
1 1 BODY C.I IS 210 Gr.FG200
2 2 COVER C.I IS 210 Gr.FG200
3 1 DOOR C.I IS 210 Gr.FG200
4 1 HINGE AISI 410
5 1 HINGE PIN AISI 410
6 2 DOOR FACE G.M
7 2 BODY SEAT G.M
8 1 GASKET G.M
9 Req, COVER BOLTS AND NUTS CARBON STEEL



HYDROSTATIC TEST PRESSURE
SIZE PN RATING BODY SEAT
50 TO 125 1.06 2.4MPo 1.6MPo
150 TO 300 1.0 1.5MPo 1.0MPo
300 T0 600 0.6 0.9MPo 0.6MPo



All Dimension are in M.M

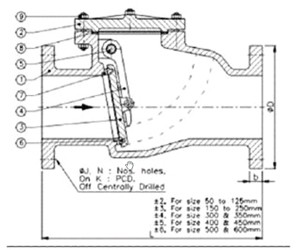

SIZE 50 65 80 100 125 150 200 250 300 350 400 450 500 600
L Force TO Force-RF 200 240 260 300 350 400 500 600 700 800 900 1000 1100 1300
øD 165 185 200 220 250 285 340 395 445 505 565 615 670 780
B 16 16 21 22 22.5 23 24.5 26 27.5 29 30 31.5 33 36
øJ 19 19 19 19 19 23 23 23 23 23 28 28 28 31
N 4 4 4 8 8 8 8 12 12 16 16 20 20 20
K:PCD 125 145 160 180 210 240 295 350 400 460 515 565 620 725
