Solenoid valve For High Pressure Fluids “HPSE” (40kg)

Categories: , ,

Share to:

"Aira" offers HIGH FLOW Piston type solenoid valves, which are specially engineered in the construction of Investment Cast CF8/ CF8M bodies for multiple and long-lasting operations, especially for HIGH-PRESSURE FLUIDS

Size: "1/4" To 6 Screwed / Flanged / Triclover
"Aira" solenoid valves are the best for inflammable media. The Flameproof? Explosion-proof solenoid coils are available in such applications.

Caution:
• Do not use for steam application
• Hot water temperature limited up to 95°C only
• Avoid Back Pressure
• INSTALLATION OF "FILTER" ON THE INLET SIDE IS HIGHLY RECOMMENDED



Valve :

Valve Body
Seat & Seals
Pressure
Temperature
Coil Voltage
Insulation
Coil Encloser Meets

Coil Rating
Media

: ASTM A 351 - CF8 / CF8M
: Teflon ( Silicon, Viton, EPOM on request
: 2 to 40 bar
: Upto 90°C
: 12V, 24V, 48V, 11OV, 230V AC/ DC
: H Class Suitable Upto 180°c
: IP 20 / IP 65 / IP 67 (Flame Proof! Explosion Proof as per IS 2148 STD for Class II A, II B, II C Zone) Continuos Rated
: Continuous Rated
: Hot Water/ LD Oil / Air/ Water / Corrosive Media

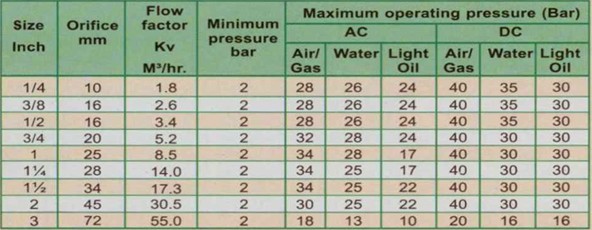

Technical Specification Table :

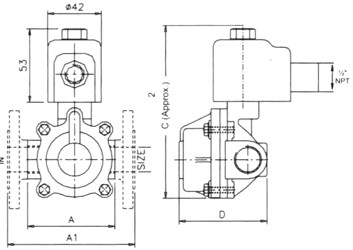

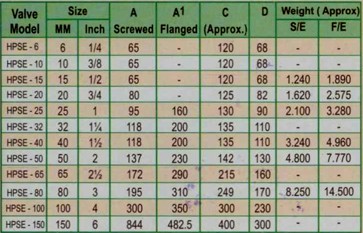

DIMENSIONS : (All Dimensions are in mm)
