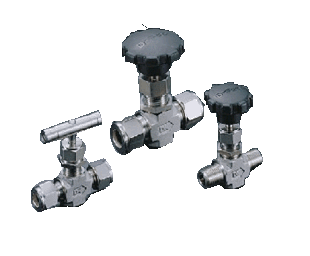

V15 series Integral Bonnet Needle Valves

  • Up to 5000psig (344 bar)
  • Up to 232℃ (450℉)
  • SS316, Brass, and Alloys
  • Regulating stem, Vee stem, and Soft seat
  • Bar and Knob handles
  • Electra OD 1/8 - OD 3/4 inch
  • Pipe thread 1/8 -1/2 inch





1. Positive Driven Handle
Choice of Round handle and Bar Handle
2. Packing Nut
Allows external adjustments of packing
3. Panel Nut
Allows panel installation without disrupting the packing
4. Integral Bonnet Design
To eliminate inadvertent stem back-out
5. Packing
-Low operating torque. -Standard PTFE -Optional PEEK for high Temperature
6. Stem
Hard chrome plated stem threads ensure extended service life
7. Choice of Fluid Control
-Metal to metal Vee & Regulating stems for elevated temperatures -Repetitive soft seat for gas leak-tight
8. Variety of end connections
-Reliable Electra® Tube Fitting Ends -NPT & ISO Male & Female

Materials of Construction

Components VALVE BODY MATERIALS Material Grade / ASTM Specification
SS316 BRASS ALLOY 400
1 Round handle Nylon with brass insert
1 Bar handle SS316/A276
Set Screw SS304/A276l
2 Packing Nut SS316/A276 Brass/B16 Alloy R-405/B164
3 Panel Nut SS316/A276 Brass/B16 Alloy R-405/B164
Packing Gland SS316/A276 Brass/B16 Alloy R-405/B164
5 Packing Standard PTFE, Optional PEEK
6,7 Regulating Stem SS316/A276
Hard Chrome-plated on stem tip and threads		 Alloy R-405
6,7 Vee Stem
6,7 Soft Seat Stem SS316/A276
Hard Chrome-plated on threads
7 Stem tip ( Soft Seat ) Kel-F
Body SS316/A182 Brass/B124 Alloy 400/B564

Design
Designed to the requirements of ASME B16.34
Designed for a wide range of general purpose in gas and liquid applications
Forged Body with Inline and Angle pattern
Integral Bonnet design to eliminate inadvertent stem back-out
Standard metal seal for pressure tightness at elevated temperatures
Standard PTFE packing, and optional PEEK packing for higher temperature service
Packing nut allows external packing adjustment to ensure leak-free packing on the stem
Broad choices of end connections include reliable Electra, NPT & ISO Male & Female pipe threads

Operation
Pressure rating up to 5000psig (345bar) @100 F (38 C)
Temperature rating up to 450 F (232 C) with standard PTFE packing; up to 600 F (315 C) with optional PEEK packing
Panel mounting without packing disruption
Standard SS316 and Brass material valve construction
Electra® Gap gauge allows easy inspection for sufficient tube pull-up before a system is pressurized
Valves for Sour Gas Service meeting the requirements of NACE MR0175 are available

Factory Test
Every valve is tested with nitrogen @1000psig (68 bar) for leakage at the seat to a maximum allowable leak rate of 0.1 cc/min. The packing is tested for no detectable leakage.

Table of Dimensions
Valve Basic Ordering Number End Connections Orifice Cv Dimensions
Inlet Outlet A B L L1 L2 E D H H1
V15
A		 F-2N 1/8" Female NPT 2.0
( .08)		 0.09 60
(2.36)		 21
( .83)		 42
(1.65)		 21( .83) 9.5
( .37)		 11
( .43)		 36
(1.42)		 32
(1.26)
M-2N 1/8" Male NPT 21
(.83)		 20( .79)
MD-2N2T 1/8" Male NPT 1/8"Electra 47(1.85) 26(1.02)
D-2T 1/8" Electra 26
(1.02)		 52
(2.05)		 26
(1.02)
D-3M- 3mm Electra
V15
B		 F-2N 1/8" Female NPT 4.4
( .172)		 0.37 60
(2.36)		 21
( .83)		 42
(1.65)		 21
( .83)		 9.5
( .37)		 11
( .43)		 36
(1.42)		 45
(1.77)
M-2N 1/8" Male NPT
M-4N 1/4" Male NPT 25
( .98)		 50(1.97) 25
( .98)		 25( .98)
MD-4N4T 1/4" Male NPT 1/4" Electra 54(2.13) 28.8
(1.13)
D-6M 6mm Electra 29
(1.14)		 57.6
(2.27)		 28.8
(1.13)
D-4T 1/4" Electra
D-8M- 8mm Electra 30(1.18) 59.2(2.33) 29.6(1.16)
V15
C		 F-4N 1/4" Female NPT 6.4
( .25)		 0.73 71
(2.80)		 28
(1.10)		 56
(2.20)		 28
(1.10)		 28
(1.10)		 13
( .51)		 13.5
( .53)		 50
(1.97		 64
(2.52)
F-4R 1/4" Female ISO Tapered
MF-4N 1/4" Male NPT 1/4" Female NPT 61.2(2.41) 33.2(1.31)
MD-4N6T 1/4" Male NPT 3/8" Electra 29
(1.14)		 58(2.28) 29(1.14) 29(1.14)
M-6N 3/8" Male NPT 62.2(2.45) 33.2(1.31)
MD-6N6T 3/8" Male NPT 3/8" Electra 65(2.56) 36(1.42)
MD-6N8T 3/8" Male NPT 1/2" Electra 33
(1.30)		 66
(2.60)		 33.2
(1.31)		 33.2
(1.31)
D-10M 10mm Electra
D-6T 3/8" Electra
D-12M 12mm Electra 36
(1.42)		 72
(2.83)		 36
(1.42)		 36
(1.42)
D-8T- 1/2" Electra
V15
D		 F-6N 3/8" Female NPT 9.5
( .375)		 1.80 99
(3.90)		 38
(1.50)		 76
(2.99)		 38
(1.50)		 38
(1.50)		 19
( .75)		 19
( .75)		 66
(2.06)		 76
(3.00)
F-6R 3/8" Female ISO Tapered
F-8N 1/2" Female NPT
F-8R 1/2" Female ISO Tapered
M-8N 1/2" Male NPT
MF-8N 1/2" Male NPT 1/2" Female NPT 49
(1.93)		 97
(3.82)		 48.5
(1.91)
D-8T 1/2" Electra
D-12T- 3/4" Electra



All dimensions shown are for reference only and are subject to change. Dimensions with Electra nuts are in a finger-tight position.
Patterns: To order angle patterns, use -A as a suffix to the valve ordering number. Example: V15A-F-2N-A

Technical Data

Working pressure
The class rating and rated working pressure are the ways that ASME standards simplify the design process. The pressure rating is governed by the allowable stress of different material groups, class rating, and service temperature.

ASME Material Group TABLE 2-2.2 N/A TABLE 2-3.4
Material Name SS316 Brass Alloy 400
ASME CLASS Rating 2080 N/A 1500
Temperature @ pressure psig bar psig bar psig Bar
100° F (38 °C) 5000 345 3000 207 3000 206
-65°F (-54°) to 200 F (93 C) 4293 296 2353 162 2640 181
300 ° F (148 ° C) 3877 267 2059 142 2470 170
350 F (176 C) 3719 256 1471 101 2430 167
400 ° F (204 ° C) 3562 246 392 27 2390 164
450° F (232 ° C) 3437 237 - - 2380 163

Note: The pressure rating of the valve is sometimes limited to the working pressure of pipe ends and the tubing connected.

Temperature and Pressure Rating with standard PTFE and Optional PEEK packing

Valve Material Stem with PTFE packing with PEEK packing
Temperature Rating Pressure Rating
@100°F (38 ° )		 Temperature Rating Pressure Rating
@100°F (38 ° )
SS316 Metal to metal
(Vee & Regulating		 -65°F to 450°F
(-54°C to 232 °C)		 5000 psig
(345 bar)		 -65° Fto 600°F
(-54°C to 315°C )		 3130 psig
(215 bar)
Soft Seat
(Kel-F)		 -65°F to 200°F
(-54°C to 93°C )		 -65°F to 200°F
(-54°C to 93°C )
Brass Metal to metal
(Vee & Regulating		 -65° Fto 400°F
(-54°C to 204 °C)		 3000 psig
(207 bar)		 -65°F to 400°F
(-54°C to 204°C )		 3000 psig
(207 bar)
Soft Seat
(Kel-F)		 -65°F to 200°F
(-54°C to 93°C )		 -65°F to 200°F
(-54°C to 93°C )
Alloy 400 Metal to metal
(Vee & Regulating)		 -65°F to 450°F
(-54°C to 232°C )		 3000 psig
(207 bar)		 -65°F to 500°F
(-54°C to 260°C )		 2370 psig
(162 bar)
Soft Seat
(Kel-F)		 -65°F to 200°F
(-54°C to 93°C )		 -65°F to 200°F
(-54°C to 93°C )



How to order
Select the applicable Valve Pattern, Stem Tip, Handle, and Body material from the designators listed below.
Valve Pattern Valve Pattern Handle Designator Body Material
Designator
  • Nil: Inline pattern
  • A: Angle pattern
  • Nil: Standard Vee stem tip
  • R: Regulating tip
  • K: Kel-F Soft seat
  • RD: Nylon round handle
  • BH: Bar Handle
  • S: SS316
  • B: Brass
  • M: Alloy 400
Handle for Soft Seat
A Round Handle is recommended for the soft seat valve to prevent the valve from excessive torque
